High-purity quartz diffusion tubes are critical process components in semiconductor thermal equipment. They are commonly used in oxidation, diffusion, annealing, LPCVD, heat treatment, and other furnace processes where wafers must be exposed to controlled gases at elevated temperatures.

Although a quartz diffusion tube may appear to be a relatively simple cylindrical component, its performance depends on much more than its outside diameter and length. Parameters such as tube diameter, wall thickness, dimensional tolerance, quartz purity, OH content, surface condition, thermal stability, cleaning method, flange geometry, and packaging can directly affect equipment compatibility, contamination control, process uniformity, and service life.

This guide explains the most important specifications engineers and purchasing teams should consider when sourcing high-purity quartz diffusion tubes for semiconductor furnaces.

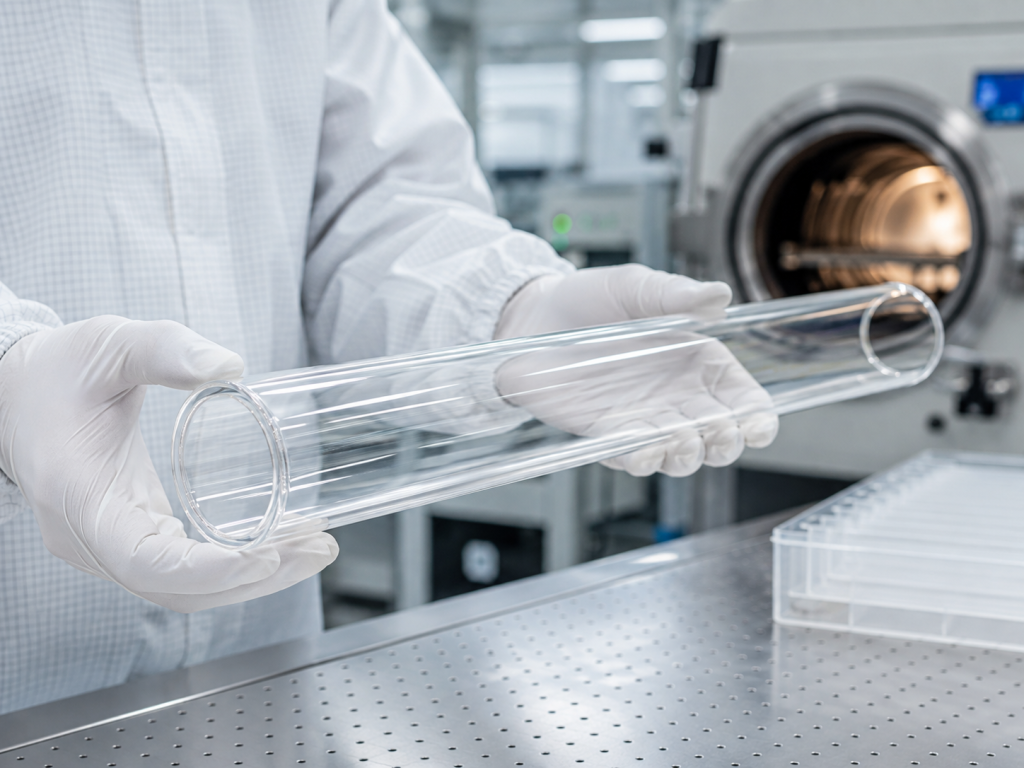

What Is a Quartz Diffusion Tube?

A quartz diffusion tube is a high-temperature process tube installed inside a semiconductor furnace.

During processing, wafers are loaded into the tube using quartz boats or carriers and exposed to controlled process gases while the furnace maintains the required temperature profile.

Typical processes include:

Thermal oxidation
Dopant diffusion
Annealing
LPCVD
Dry oxidation
Wet oxidation
High-temperature heat treatment
Research furnace processing

Quartz is particularly suitable for these applications because it provides a combination of:

High temperature resistance
Very low thermal expansion
High chemical resistance
Excellent electrical insulation
High material purity
Good resistance to many process gases

For semiconductor applications, however, ordinary industrial quartz tubing may not provide sufficient purity or dimensional control. High-purity fused quartz is generally required.

1. Quartz Diffusion Tube Diameter

Diameter is one of the first specifications that must be confirmed.

A diffusion tube normally has both:

Outer Diameter — OD

and

Inner Diameter — ID

The relationship between OD, ID, and wall thickness determines the mechanical strength and internal process space of the tube.

The required diameter depends mainly on:

Wafer diameter
Quartz boat dimensions
Furnace chamber design
Gas flow requirements
Heater geometry
Required process clearance

Quartz furnace tubes may be designed for wafer sizes such as:

Small research wafers
2-inch wafers
3-inch wafers
4-inch wafers
6-inch wafers
8-inch wafers
Custom semiconductor substrates

The tube diameter should never be selected based only on wafer diameter.

The wafer boat, loading mechanism, process gas distribution, and thermal clearance must also be considered.

OD vs ID: Which Dimension Is More Important?

Both dimensions are important, but their functional significance can differ.

Outside Diameter

OD affects compatibility with:

Furnace heating zones
Support structures
Sealing assemblies
Tube holders
Insulation components
Equipment frames

If the OD is too large or too small, the diffusion tube may not fit the furnace correctly.

Inside Diameter

ID determines the usable internal process space.

It affects:

Wafer boat clearance
Gas flow
Loading and unloading
Process volume
Distance between wafers and the tube wall

For replacement tubes, the safest approach is usually to provide the original tube drawing or accurately measured OD and ID.

2. Diameter Tolerance

Quartz is a brittle material, and large furnace tubes are typically formed and thermally processed rather than machined in the same way as metal pipes.

Therefore, realistic diameter tolerances should be defined.

The required tolerance depends on:

Tube diameter
Tube length
Wall thickness
Furnace design
Sealing method
Flange geometry

Critical interfaces may need tighter dimensional control than non-functional sections.

For example, the sealing end or flange area may require tighter tolerances than the center process section.

When preparing an RFQ, buyers should distinguish between:

critical fitting dimensions

and

general tube dimensions.

This can reduce unnecessary manufacturing cost.

3. Wall Thickness

Wall thickness is another critical diffusion tube parameter.

It influences:

Mechanical strength
Tube rigidity
Thermal behavior
Furnace loading
Vacuum performance
Resistance to deformation
Service life

A wall that is too thin may increase the risk of:

Sagging
Distortion
Cracking
Handling damage

A wall that is unnecessarily thick may increase:

Material consumption
Tube weight
Thermal mass
Cost

The optimal wall thickness therefore depends on tube diameter, length, operating temperature, furnace support design, and process pressure.

4. Wall Thickness Uniformity

Nominal wall thickness alone does not fully describe tube quality.

Wall thickness should remain reasonably uniform around the circumference and along the critical process area.

Large variation may result in:

Uneven mechanical stress
Localized heating differences
Dimensional instability
Reduced service life

For precision semiconductor furnace components, manufacturers may inspect several positions along the tube rather than measuring only one point.

Where wall thickness uniformity is particularly important, the drawing should state the inspection requirement.

5. Tube Length

Diffusion tubes can range from relatively short laboratory components to long furnace tubes used in production equipment.

Length affects both manufacturing difficulty and thermal behavior.

Long quartz tubes require careful control of:

Straightness
Diameter
Wall thickness
End geometry
Support position

As tube length increases, maintaining precise geometry becomes more challenging.

Long tubes can also become more sensitive to:

Handling stress
Gravity-induced deformation
High-temperature sagging

For replacement parts, buyers should provide the complete overall length rather than only the heated-zone length.

6. Straightness

Straightness is especially important for long semiconductor furnace tubes.

Poor straightness may create problems with:

Furnace installation
Heater clearance
Boat loading
Process alignment
Sealing

The required straightness should depend on the equipment design.

If the furnace has very limited clearance between the quartz tube and heater assembly, straightness may become a critical specification.

For long diffusion tubes, straightness should therefore be evaluated together with diameter and wall thickness.

7. High-Purity Quartz Material

Material purity is one of the most important differences between semiconductor quartz components and general industrial quartz products.

Quartz used in semiconductor furnaces should minimize the introduction of unwanted contaminants into the process environment.

Potential metallic impurities can include elements such as:

Sodium
Potassium
Iron
Aluminum
Calcium
Lithium
Titanium

The acceptable impurity concentration depends on the semiconductor process and quartz grade.

For contamination-sensitive processes, buyers should specify:

high-purity semiconductor-grade fused quartz

rather than simply requesting “quartz glass.”

8. Why Quartz Purity Matters

During high-temperature semiconductor processing, the furnace environment must remain highly controlled.

Contamination originating from furnace components may affect:

Wafer surface cleanliness
Dopant control
Gate oxide quality
Thin-film properties
Device yield
Process repeatability

For this reason, quartz material selection should be considered together with the cleaning and packaging process.

A high-purity raw material can still become contaminated if machining, welding, cleaning, handling, or packaging are poorly controlled.

9. What Is OH Content in Quartz?

OH content refers to the concentration of hydroxyl groups within fused quartz or fused silica.

Different quartz manufacturing processes can produce materials with different OH levels.

OH content can influence characteristics such as:

Infrared transmission
High-temperature behavior
Viscosity
Optical absorption
Certain thermal properties

There is no single OH level that is automatically best for every quartz diffusion tube application.

The appropriate material should be selected according to the furnace temperature, process chemistry, semiconductor requirements, and original equipment specification.

10. Low-OH vs Higher-OH Quartz

Quartz materials are often discussed in terms of lower or higher OH content.

The manufacturing route of the quartz has a strong influence on this property.

Lower-OH Quartz

Lower-OH grades may be preferred for certain high-temperature or infrared-related applications.

Depending on the material and process, lower hydroxyl concentration may help meet specific thermal or optical performance requirements.

Higher-OH Fused Silica

Some synthetic fused silica materials may contain higher OH levels while providing extremely high chemical purity and excellent ultraviolet optical performance.

Such materials can be valuable for optical components but are not automatically the best choice for every furnace tube.

Therefore, engineers should avoid specifying a quartz tube based only on the lowest possible OH number.

The complete application should be considered.

11. OH Content Should Match the Existing Furnace Specification

For replacement diffusion tubes, the safest approach is often to match the material specification used by the original furnace design.

Changing the quartz grade without evaluation may alter:

Thermal behavior
Service life
Optical properties
Process contamination characteristics

If the existing specification is unknown, buyers should provide information about:

Maximum operating temperature
Process atmosphere
Furnace type
Wafer material
Semiconductor process

The quartz supplier can then help determine an appropriate material grade.

12. Thermal Stability

One reason fused quartz is widely used in diffusion furnaces is its very low coefficient of thermal expansion.

This allows quartz components to withstand substantial temperature changes better than many conventional glass materials.

However, low thermal expansion does not mean quartz is immune to thermal damage.

Failure may still occur because of:

Rapid temperature changes
Localized heating
Surface contamination
Existing microcracks
Mechanical stress
Devitrification
Improper support

The furnace operating procedure should therefore remain within the recommended thermal conditions.

13. High-Temperature Sagging

Large quartz diffusion tubes may gradually deform when used for long periods at elevated temperature.

This phenomenon may be influenced by:

Operating temperature
Tube diameter
Wall thickness
Quartz viscosity
Tube length
Support spacing
Service duration

Sagging may eventually affect:

Wafer boat clearance
Tube installation
Gas flow
Process uniformity

When designing a long diffusion tube, mechanical support and wall thickness should therefore be considered together.

14. Devitrification

Fused quartz is normally amorphous.

Under certain high-temperature conditions, especially when contamination is present, portions of the surface may begin to crystallize.

This process is known as devitrification.

Possible symptoms include:

Cloudy areas
White crystalline regions
Rough surfaces
Reduced mechanical reliability

Contaminants can accelerate devitrification.

For this reason, furnace quartz components should be kept clean and should not be touched directly with bare hands.

15. Process Gas Compatibility

Quartz diffusion tubes may be exposed to many different process gases.

Depending on the furnace process, these may include gases used for:

Oxidation
Diffusion
Annealing
Deposition
Purging

Before purchasing a replacement tube, buyers should inform the supplier about unusual or aggressive process chemistry.

Quartz offers excellent chemical resistance in many environments, but chemical compatibility should not be assumed for every process condition.

Temperature, gas concentration, and exposure time all matter.

16. Tube End Geometry

A semiconductor diffusion tube rarely consists only of a straight cylinder.

Tube ends may include features such as:

Flared ends
Ground joints
Quartz flanges
Lips
Reduced sections
Enlarged sections
Sealing surfaces

These features must match the original furnace assembly.

Critical dimensions may include:

Flange outside diameter
Flange thickness
Sealing surface
Joint diameter
Joint angle
End length
Concentricity

For replacement tubes, photographs alone are usually insufficient.

A technical drawing or original sample is preferable.

17. Side Ports and Gas Connections

Quartz diffusion tubes may contain side arms or ports for:

Gas inlet
Gas outlet
Exhaust
Pressure measurement
Temperature measurement
Process monitoring

Port specifications should include:

Tube diameter
Wall thickness
Position
Angle
Length
Joint type

The welded area around the port is particularly important because it experiences both thermal and mechanical stress.

Smooth transitions and good welding quality can help reduce stress concentration.

18. Quartz Welding Quality

Large semiconductor diffusion tubes often require quartz welding to connect:

Flanges
Side ports
Injectors
Joint sections
Exhaust connections

Welding quality can influence:

Mechanical strength
Leak performance
Thermal reliability
Dimensional accuracy

Poorly controlled welding may create:

Localized distortion
Residual stress
Uneven wall thickness
Weak transition areas

For precision furnace tubes, weld zones should be carefully formed and inspected.

19. Surface Condition

The internal surface of a diffusion tube directly faces the semiconductor process environment.

Surface condition can therefore affect:

Particle behavior
Contamination
Cleaning effectiveness
Process stability

The required surface finish depends on the furnace process.

A semiconductor-grade tube should be manufactured and handled in a way that minimizes:

Grinding residue
Surface contamination
Loose particles
Metallic contamination

Special attention should be paid to welded and machined areas.

20. Cleaning High-Purity Quartz Diffusion Tubes

Cleaning is one of the most important stages before a diffusion tube enters a semiconductor furnace.

During manufacturing, contamination can be introduced through:

Cutting
Grinding
Welding
Handling
Measurement
Storage

The cleaning process should remove residues without damaging or contaminating the quartz surface.

Depending on the required cleanliness level, cleaning may involve several controlled stages using suitable chemicals, high-purity water, and clean handling.

21. Why Ordinary Cleaning May Be Insufficient

A quartz component can look perfectly clean to the naked eye while still carrying microscopic contaminants.

Possible contaminants include:

Fine particles
Metallic ions
Organic residues
Dust
Fingerprints

In semiconductor processes, these contaminants may become important even when they cannot be seen visually.

Therefore, semiconductor furnace components should not be evaluated only by appearance.

Cleaning specifications should correspond to the intended process.

22. Semiconductor-Grade Cleaning

When semiconductor-grade cleaning is required, the supplier should use appropriate contamination-control procedures.

The exact process depends on the application and customer specification.

Important considerations include:

Controlled cleaning chemicals
High-purity rinse water
Clean containers
Contamination-controlled handling
Appropriate drying
Clean packaging

After final cleaning, unnecessary handling should be avoided.

23. Handling After Cleaning

Even an excellent cleaning process can be compromised by poor handling afterward.

Clean quartz should generally be handled using suitable:

Clean gloves
Clean tools
Clean packaging materials

Direct contact with bare hands should be avoided.

Fingerprints can introduce contamination that may become more problematic during high-temperature use.

24. Packaging Requirements

A large quartz diffusion tube is both fragile and contamination-sensitive.

Packaging therefore has two purposes:

mechanical protection

and

cleanliness protection.

A suitable packaging system should help prevent:

Impact
Vibration
Tube movement
Surface contamination
Dust exposure

Large tubes may require customized supports so that mechanical loads are distributed over safe areas.

Critical quartz ports and flanges should receive additional protection.

25. Visual Inspection

Before shipment, quartz diffusion tubes should normally undergo visual inspection.

Typical inspection items may include:

Cracks
Chips
Scratches
Welding defects
Contamination
Abnormal deformation
Surface defects

Visual inspection is especially important around:

Flanges
Weld joints
Side ports
Tube ends

Any inspection criteria required by the customer should be clearly stated before production.

26. Dimensional Inspection

Important dimensions should be verified according to the drawing.

Inspection may include:

OD
ID
Overall length
Wall thickness
Flange dimensions
Port position
Port angle
Straightness

Critical dimensions should be identified separately.

This prevents unnecessary tight control on non-critical dimensions while ensuring compatibility at important interfaces.

27. Leak Testing

Diffusion tubes containing welded ports, joints, or sealing structures may require leak testing.

Leak requirements depend on:

Furnace design
Atmospheric or reduced-pressure operation
Process sensitivity
Sealing method

For applications where leak integrity is critical, the RFQ should clearly specify the required test method or allowable leak rate.

Leak testing requirements should be agreed upon before production rather than added after manufacturing.

28. Quartz Diffusion Tube Specification Checklist

A complete RFQ should include the following information whenever possible:

Parameter	Information to Provide
Material	High-purity fused quartz grade
Application	Oxidation, diffusion, LPCVD, annealing, etc.
Wafer size	4″, 6″, 8″ or custom
OD	Required outside diameter
ID	Required inside diameter
Wall thickness	Nominal value and tolerance
Length	Overall tube length
Straightness	Requirement if critical
OH content	Required grade or limit if applicable
Purity	Semiconductor-grade requirement
End structure	Flange, joint, open end, etc.
Ports	Diameter, position, angle and quantity
Surface	Process-side surface requirement
Cleaning	Standard or semiconductor-grade
Leak test	Required if applicable
Packaging	Clean and protective packaging
Quantity	Prototype and production quantity
Drawing	PDF/DWG/STEP or original sample

29. Example RFQ

A useful inquiry may be structured as follows:

Product: High-Purity Quartz Diffusion Tube
Application: Semiconductor oxidation furnace
Wafer Size: 200 mm
Material: Semiconductor-grade fused quartz
Outside Diameter: According to attached drawing
Inside Diameter: According to attached drawing
Wall Thickness: According to drawing
Overall Length: According to drawing
OH Requirement: Please confirm suitable grade
Ports: Two gas ports, dimensions per drawing
Tube End: Quartz flange
Cleaning: Semiconductor-grade cleaning
Inspection: Dimensional and visual inspection
Packaging: Clean protective packaging
Quantity: 2 pcs for qualification, production quantity to follow

This provides significantly more useful information than simply asking:

“Please quote a quartz furnace tube.”

30. Common Specification Mistakes

Several problems repeatedly appear in quartz diffusion tube RFQs.

Providing Only OD and Length

This is usually insufficient.

ID, wall thickness, port geometry, flange structure, and application may also be critical.

Ignoring OH Content and Quartz Grade

Not every transparent quartz material has identical chemical and thermal properties.

Specifying Extremely Tight Tolerances Everywhere

Large quartz tubes are not machined like precision metal components.

Tolerances should focus on functional interfaces.

Ignoring Cleaning

For semiconductor applications, cleanliness may be as important as dimensional accuracy.

Using Photographs Without Drawings

Photographs are useful for identifying the general component but cannot accurately define critical geometry.

31. Replacement Quartz Diffusion Tubes

When replacing an existing furnace tube, buyers should ideally provide:

Original equipment model
Existing quartz tube drawing
Original part number
Process type
Wafer diameter
Operating temperature
Photographs
Old tube sample if available

If no drawing exists, a quartz manufacturer may reproduce the component based on a physical sample.

However, critical dimensions and functional interfaces should still be confirmed before production.

32. Prototype Qualification Before Volume Production

For customized semiconductor furnace tubes, it is often advisable to qualify a small number of components before placing a larger production order.

Qualification may evaluate:

Equipment fit
Wafer boat clearance
Port alignment
Sealing
Leak performance
Thermal cycling
Process cleanliness
Service life

After successful qualification, the approved dimensions and inspection requirements can be used as the production standard.

Conclusion

A high-purity quartz diffusion tube should not be specified only by diameter and length.

For reliable semiconductor furnace operation, engineers should consider the complete relationship between:

diameter, ID, wall thickness, tube length, straightness, quartz purity, OH content, surface condition, flange geometry, port configuration, cleaning, inspection, and packaging.

Among these parameters, diameter and wall thickness determine mechanical compatibility and strength, while material purity and OH content help define the quartz material characteristics.

Cleaning and contamination control are equally important because even a dimensionally perfect tube can create process problems if the internal surface is contaminated.

For custom or replacement semiconductor quartz diffusion tubes, the most effective sourcing approach is to provide a detailed technical drawing together with operating conditions and cleanliness requirements.

This allows the quartz manufacturer to evaluate manufacturability, recommend an appropriate material grade, control critical dimensions, and develop a suitable cleaning and inspection process.

Frequently Asked Questions

What material should be used for semiconductor diffusion tubes?

High-purity fused quartz is commonly used because of its high-temperature capability, low thermal expansion, chemical resistance, electrical insulation, and low contamination potential.

Is quartz diffusion tube OD the same as wafer size?

No. The tube must be substantially larger than the wafer because it also needs to accommodate the quartz boat, loading clearance, and process gas flow.

Why is wall thickness important?

Wall thickness affects mechanical strength, rigidity, thermal mass, deformation resistance, and service life. The appropriate thickness depends on tube diameter, length, operating temperature, and furnace design.

What is OH content in quartz?

OH content refers to hydroxyl groups present within fused quartz or fused silica. It varies with the material manufacturing process and can influence optical and high-temperature properties.

Is lower OH always better for a diffusion tube?

No. The correct quartz grade depends on the furnace process, temperature, contamination requirements, and original equipment specification. OH content should be considered together with overall material purity and application requirements.

Why does a semiconductor quartz tube need special cleaning?

Machining, welding, handling, and storage can introduce particles, metallic contamination, and organic residues. Semiconductor-grade cleaning helps reduce the risk of transferring these contaminants into the wafer process.

What information should be sent when requesting a custom diffusion tube?

Provide the OD, ID, wall thickness, overall length, quartz grade, end structure, port dimensions, cleaning requirement, process conditions, quantity, and preferably a complete technical drawing.
