Quartz Wafer Edge Exclusion: Usable Diameter, Edge Bevel and Inspection Criteria for Custom Orders

When ordering a custom quartz wafer or fused silica wafer, the nominal diameter is only one part of the specification. The usable area can be smaller than the physical wafer diameter because of edge exclusion, edge bevel, handling limitations and inspection requirements.

If these details are not clearly defined before production, the delivered wafer may meet the nominal diameter but still fail to provide the usable process area required by the customer.

This guide explains how to specify quartz wafer edge exclusion, edge bevel and related inspection criteria for custom orders.

What Is Quartz Wafer Edge Exclusion?

Edge exclusion is the outer peripheral area of a wafer that is excluded from a defined process, inspection or usable region.

For a circular wafer, the edge exclusion is usually described as a radial distance from the physical wafer edge toward the center. However, the exact definition can vary depending on the application and inspection method.

The excluded area may be required because of:

  • Edge bevel geometry
  • Handling contact
  • Process non-uniformity
  • Deposition or etching near the wafer edge
  • Surface damage or microcracks
  • Measurement limitations
  • Required clearance from a fixture, chuck or shadow ring
  • Reduced flatness or thickness uniformity near the perimeter

In semiconductor processing, the wafer edge can be more difficult to control because it is chamfered and may experience different gas flow, heating and mechanical contact conditions. Unwanted edge deposition can also generate particles during handling or later processing. A semiconductor wafer edge-protection patent describes how chamfered edges and unwanted edge deposition can affect particle control and process uniformity.

For this reason, edge exclusion should be treated as a defined engineering parameter rather than an informal visual margin.

Physical Diameter vs Usable Diameter

The physical diameter is the measured outside diameter of the quartz wafer. The usable diameter is the area available for the intended process, inspection or device layout.

If the edge exclusion is defined as a uniform radial width, the approximate usable diameter can be calculated as:

Usable diameter = Nominal wafer diameter − 2 × edge exclusion

For example, if a wafer has a nominal diameter of 200 mm and the specified radial edge exclusion is 2 mm on each side, the approximate usable diameter is 196 mm.

This calculation is useful for early design work, but it should not replace a complete drawing or inspection definition. The actual usable area may also be affected by:

  • Edge bevel width
  • Local chips or cracks
  • Flat or notch geometry
  • Wafer centering
  • Thickness variation
  • Required measurement points
  • Process-specific exclusion zones

The quotation should clearly state whether the edge exclusion is measured from the physical outside diameter, the nominal wafer profile or another reference boundary.

Edge Exclusion Is Not the Same as Edge Bevel

Edge exclusion and edge bevel are related but different specifications.

Edge exclusion defines an area that is not included in the usable or evaluated region. Edge bevel describes the geometry of the wafer perimeter, where material is removed or shaped between the front surface, back surface and outer edge.

A quartz wafer edge bevel may be described by:

  • Bevel width
  • Bevel angle
  • Bevel radius
  • Transition profile
  • Front-side and back-side edge condition
  • Symmetry between both sides
  • Surface finish of the bevel
  • Maximum edge-chip size

The bevel may improve handling safety and reduce sharp corners, but it also changes the local geometry of the wafer. A bevel that is too wide may reduce the available surface area. A bevel that is too narrow or poorly finished may increase the risk of chipping and mechanical damage.

A custom order should therefore specify both the edge exclusion zone and the bevel profile.

Why Edge Exclusion Matters for Quartz Wafers

Quartz and fused silica wafers are used in optical, semiconductor, laboratory and high-temperature applications. The edge zone may be exposed to different mechanical, thermal and process conditions from the central wafer area.

Process uniformity

In thermal, deposition or coating equipment, gas flow and temperature distribution may change near the wafer perimeter. This can produce a different process result at the edge compared with the center.

Particle control

Chips, microcracks, loose deposits and poorly finished bevels can contribute to particle generation. This is particularly important when the quartz wafer is used near sensitive semiconductor or optical components.

Mechanical handling

Robot blades, vacuum chucks, edge grips and support rings may contact or approach the wafer perimeter. The edge profile must provide enough clearance and strength for reliable handling.

Optical inspection

For optical quartz wafers, edge defects may influence transmission measurements, visual inspection or the definition of the optical aperture. The buyer should specify whether the optical evaluation area includes or excludes the beveled edge.

Dimensional inspection

The edge region can contain bevels, transition areas and local geometry changes. If the supplier measures flatness, surface roughness or thickness variation across the entire physical diameter without defining the exclusion zone, the results may not be comparable between suppliers.

How to Specify Edge Exclusion in a Custom RFQ

A custom quartz wafer RFQ should use a clear and measurable description.

Important information includes:

  • Nominal wafer diameter
  • Required usable diameter
  • Radial edge exclusion
  • Front-side edge exclusion
  • Back-side edge exclusion
  • Edge bevel width
  • Bevel angle or radius
  • Edge transition profile
  • Notch or flat location, if required
  • Maximum allowable edge chips
  • Crack and microcrack requirements
  • Measurement reference
  • Inspection instrument or method
  • Quantity and application

Avoid writing only “standard edge exclusion” unless the applicable standard is clearly identified and accepted by both parties.

A better description would specify the physical diameter, the usable evaluation diameter and the edge profile separately.

Diameter and Usable Area

The wafer diameter should be stated with its tolerance. For example, a drawing may identify a nominal diameter together with a maximum and minimum allowable value.

The usable area should also be defined independently. A customer may require:

  • A specific usable diameter
  • A circular evaluation region
  • A front-side usable zone
  • A back-side contact area
  • A process-free peripheral ring
  • A minimum distance from the edge to a functional feature

For a wafer with a notch or flat, the usable region may not be perfectly circular. The drawing should show how the notch or flat relates to the edge exclusion boundary.

This prevents confusion between the mechanical outside diameter and the process area that the customer can actually use.

Flatness, TTV and Surface Roughness

Edge exclusion should be connected to other wafer specifications.

Flatness

Flatness measurements should identify the evaluation area. If the bevel and outer edge are excluded, the supplier should state the diameter or radial boundary used for the flatness measurement.

Total Thickness Variation

TTV can be affected by measurement points near the wafer edge. The inspection report should state whether the edge exclusion zone is removed from the TTV calculation.

Surface roughness

Surface roughness requirements should identify the measured surface and measurement location. A front-side polished area, back-side lapped area and bevel area may have different requirements.

Bow and warp

For thin quartz wafers, bow or warp may influence chuck contact, optical alignment and process uniformity. The supplier should confirm whether bow and warp are measured across the physical wafer or within the usable diameter.

A complete inspection report should not list only a single result. It should also identify the measurement area and method.

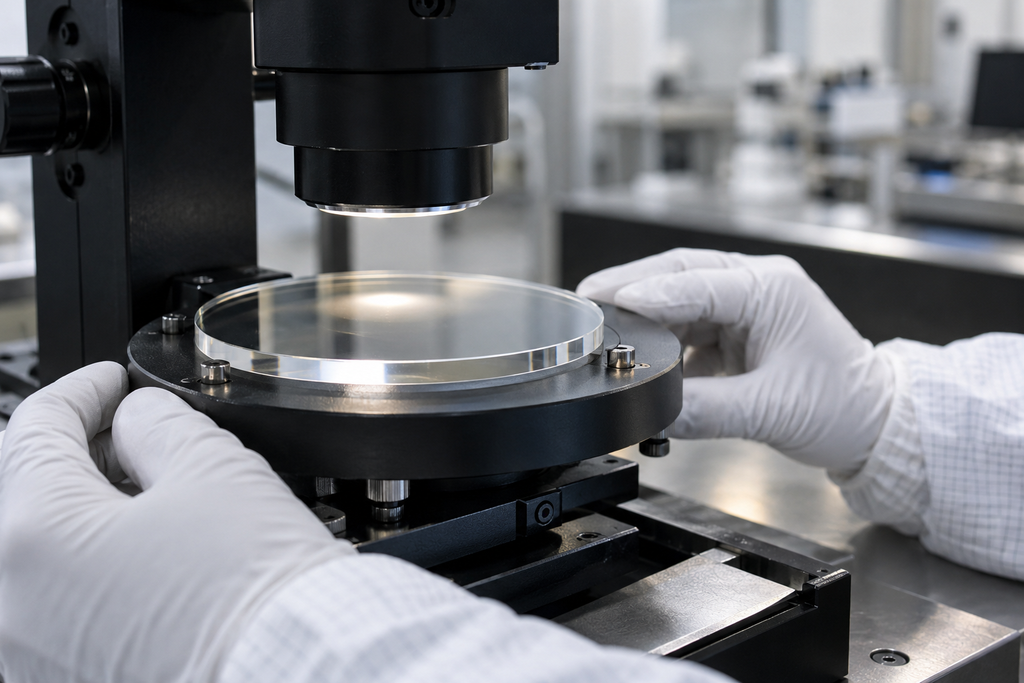

Edge Bevel Inspection Criteria

The edge bevel should be inspected for both geometry and defects.

Possible inspection items include:

  • Bevel width
  • Bevel angle
  • Bevel radius
  • Front-side transition
  • Back-side transition
  • Edge symmetry
  • Surface finish
  • Chipping
  • Cracks
  • Sharp points
  • Loose particles
  • Local discoloration or contamination

For high-purity applications, visual inspection under normal room lighting may not be sufficient. The supplier may need to use calibrated optical inspection or magnification to identify small edge defects.

The acceptance criteria should define the maximum permitted chip size and whether any crack is acceptable. In many applications, cracks extending from the bevel toward the active surface should be treated as a critical defect.

Recommended Inspection Documents

Before shipment, the customer may request an inspection package that includes:

  • Material certificate
  • Material grade and lot information
  • Diameter measurement
  • Thickness measurement
  • Thickness variation or TTV result
  • Flatness report
  • Bow and warp results
  • Surface roughness data
  • Edge bevel measurement
  • Edge exclusion reference
  • Visual inspection record
  • Edge-chip and crack inspection
  • Notch or flat position measurement
  • Cleaning and packaging confirmation
  • Pre-shipment photographs

The report should reference the same drawing number and revision used for production.

For repeat orders, the supplier should maintain lot traceability so that differences between batches can be investigated.

How to Compare Quartz Wafer Suppliers

When comparing suppliers, evaluate more than the quoted unit price.

Important questions include:

  1. Can the supplier manufacture the required diameter and thickness?
  2. Can the supplier control the edge bevel consistently?
  3. Is the usable diameter measured according to the customer’s definition?
  4. Can the supplier inspect edge chips and microcracks?
  5. Are flatness, TTV and roughness measured within the correct evaluation area?
  6. Can the supplier provide material and inspection documents?
  7. Is the wafer cleaned and packaged according to the application?
  8. Can the supplier produce a first article before repeat production?
  9. Can the same edge profile be maintained across multiple batches?
  10. Can the supplier review a drawing before quotation?

A supplier that provides a lower price but cannot define the inspection method may create additional costs through rejected parts, delayed qualification or repeated sampling.

Common Specification Mistakes

Several mistakes occur frequently during custom quartz wafer purchasing:

  • Defining only the nominal diameter
  • Using “standard bevel” without a drawing
  • Confusing edge exclusion with bevel width
  • Measuring usable diameter from the wrong reference
  • Ignoring the notch or flat when defining the usable area
  • Requesting TTV without defining the measurement zone
  • Requesting “smooth edges” without a chip limit
  • Accepting a visual inspection statement without a report
  • Failing to define front-side and back-side requirements
  • Not confirming packaging for thin or polished wafers

These problems can usually be avoided by providing a drawing and confirming the inspection method before production begins.

Custom Quartz Wafer RFQ Checklist

For a faster technical review, include the following information in your inquiry:

  • Wafer material and grade
  • Diameter and tolerance
  • Thickness and tolerance
  • Usable diameter
  • Radial edge exclusion
  • Edge bevel dimensions
  • Edge radius or angle
  • Flatness
  • TTV
  • Bow and warp
  • Surface roughness
  • Notch or flat requirements
  • Maximum edge-chip size
  • Crack inspection requirements
  • Cleaning requirements
  • Quantity
  • Application
  • Required inspection documents
  • Delivery schedule

If the specification is not complete, a drawing, sketch or sample wafer can help the supplier evaluate feasibility.

Frequently Asked Questions

What is the difference between edge exclusion and usable diameter?

Edge exclusion is the outer area excluded from processing or inspection. Usable diameter is the remaining diameter available for the intended application.

Is edge exclusion the same on the front and back surfaces?

Not always. Front-side and back-side requirements may differ depending on the chuck, support structure, process gas flow and inspection method.

Does a larger edge bevel reduce usable wafer area?

It can. The bevel changes the perimeter geometry and may reduce the area available for process or inspection, depending on how the usable region is defined.

Should TTV include the wafer edge?

The answer depends on the application. Many customers define TTV within a specified evaluation diameter and exclude the bevel or outer edge zone. The measurement area should be agreed before production.

Can a supplier provide a custom edge bevel?

Yes. Custom quartz and fused silica wafers can be manufactured with specified bevel dimensions, edge profiles and inspection requirements, subject to wafer thickness, diameter and geometry.

Conclusion

Edge exclusion is an important specification for custom quartz wafers because it connects the physical wafer diameter with the actual usable process area.

A complete order should define the nominal diameter, usable diameter, edge exclusion, edge bevel, flatness, TTV, surface roughness and inspection method. The supplier should also provide material documentation and an inspection report that clearly identifies the measurement area.

For custom quartz wafers and fused silica wafers, send your drawing, diameter, thickness, edge profile, usable area, quantity and application requirements for technical review and quotation.
