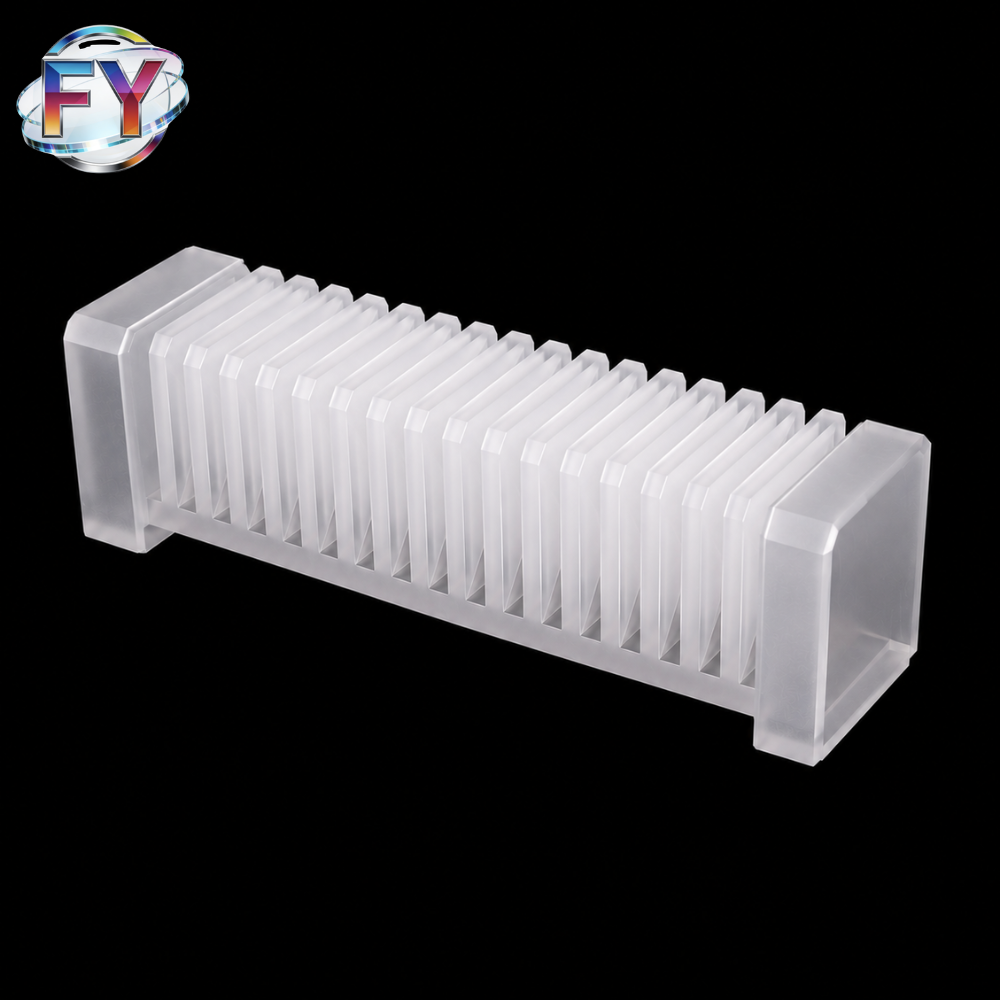

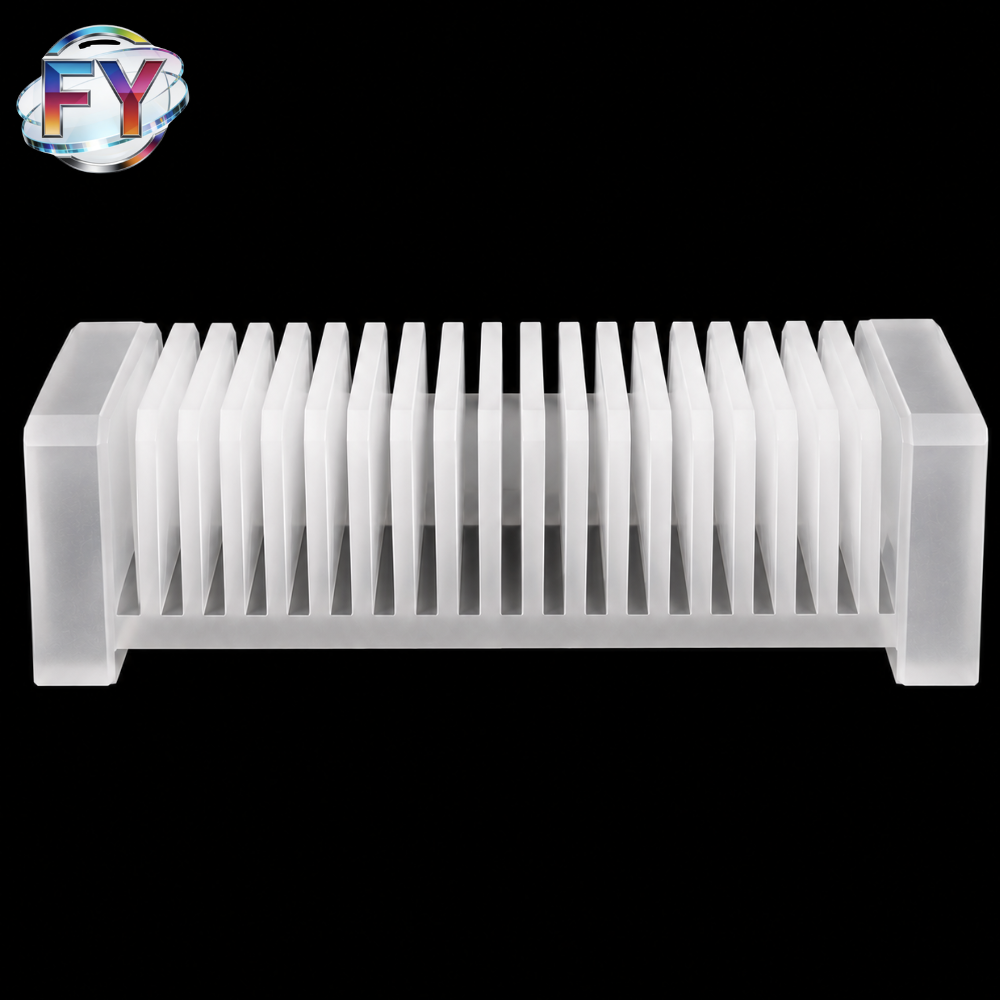

The Quartz Thermal Insulation Plate Holder is a precision-machined fused quartz component specifically designed for supporting and p
ositioning quartz insulation plates in photovoltaic furnace tube openings. Manufactured from high-purity fused quartz, it provides excellent thermal stability, low thermal expansion, and superior resistance to thermal shock, making it an ideal solution for long-term operation in high-temperature environments.
The unique multi-slot structure securely holds multiple quartz insulation plates at uniform spacing, forming an effective thermal barrier around the furnace opening. This design helps reduce heat loss, improve temperature uniformity, and protect surrounding furnace components from excessive thermal exposure.
Our quartz insulation plate holders are widely used in photovoltaic diffusion furnaces, oxidation furnaces, semiconductor processing equipment, and other high-temperature thermal systems where precise insulation and reliable positioning are required.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Quartz Thermal Insulation Plate Holder |
| Material | High Purity Fused Quartz |
| Standard Size | 245 × 93 × 38 mm |
| Structure | Multi-Slot Plate Holder |
| Color | Milky White / Frosted Quartz |
| Surface Finish | Precision Ground |
| Working Temperature | Up to 1100°C (Continuous) |
| Softening Point | Approx. 1680°C |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷ /°C |
| Purity | ≥99.99% SiO₂ |
| Custom Manufacturing | Available |
| OEM / ODM | Supported |
Product Features
Excellent High Temperature Resistance
Fused quartz maintains exceptional mechanical stability under continuous high-temperature operation, making it suitable for photovoltaic and semiconductor furnace applications.
Low Thermal Expansion
Quartz exhibits one of the lowest thermal expansion coefficients among engineering materials, significantly reducing thermal deformation during rapid heating and cooling cycles.
Precision Multi-Slot Design
The evenly spaced slot structure securely positions multiple insulation plates while maintaining consistent spacing for optimal thermal insulation performance.
Superior Thermal Shock Resistance
The holder withstands repeated thermal cycling without cracking or deformation, ensuring reliable long-term operation.
High Purity Quartz Material
Manufactured from high-purity fused quartz to minimize contamination, making it suitable for clean manufacturing environments.
Excellent Mechanical Strength
Precision machining provides accurate dimensions, stable support, and excellent installation compatibility with furnace assemblies.
Product Advantages
- High purity fused quartz construction
- Excellent thermal insulation support
- Uniform slot spacing
- Outstanding thermal shock resistance
- Low coefficient of thermal expansion
- Stable performance during continuous operation
- High dimensional accuracy
- Long service life
- Suitable for cleanroom environments
- Custom designs available
Typical Applications
The Quartz Thermal Insulation Plate Holder is widely used in:
- Photovoltaic diffusion furnaces
- Solar cell manufacturing equipment
- Furnace tube opening insulation systems
- Semiconductor diffusion furnaces
- Oxidation furnaces
- LPCVD equipment
- High-temperature quartz assemblies
- Thermal processing equipment
- Laboratory furnace systems
- Industrial heating equipment
Manufacturing Process
Each quartz insulation plate holder is produced through strict precision machining processes:
- High-purity quartz material selection
- CNC cutting
- Precision slot machining
- Grinding and edge finishing
- Surface cleaning
- Dimensional inspection
- Quality verification
- Protective packaging
Quality Inspection
Every product undergoes comprehensive inspection before shipment, including:
- Overall dimension inspection
- Slot spacing verification
- Slot width inspection
- Flatness measurement
- Surface quality inspection
- Edge integrity inspection
- Crack and chip inspection
- Cleanliness verification
Custom Manufacturing Service
We provide complete OEM and custom machining services according to customer drawings or samples.
Customization options include:
- Overall dimensions
- Slot quantity
- Slot width
- Slot spacing
- Base thickness
- Support height
- Chamfer design
- Surface finish
- Precision tolerance
- Special installation structures
Both prototype and volume production are available.
Why Choose Us
As a professional manufacturer of precision fused quartz components, we offer:
- Years of quartz machining experience
- Advanced CNC processing equipment
- Strict quality control system
- Fast engineering support
- Custom manufacturing capabilities
- Stable production capacity
- Competitive pricing
- Global export experience
- Reliable delivery schedule
FAQ
Q1. What is the function of a quartz thermal insulation plate holder?
It is designed to securely support and position quartz insulation plates around furnace tube openings, improving thermal insulation efficiency and protecting surrounding furnace components.
Q2. Can the slot quantity and spacing be customized?
Yes. We can manufacture different slot numbers, widths, depths, and spacing according to customer drawings or equipment requirements.
Q3. What industries use this product?
It is mainly used in photovoltaic, semiconductor, laboratory, and other high-temperature industrial furnace systems.
Q4. Can you manufacture according to CAD drawings?
Yes. We provide complete custom machining services based on CAD drawings, STEP files, technical drawings, or physical samples.
Q5. Can matching quartz insulation plates also be supplied?
Yes. We can manufacture both the Quartz Thermal Insulation Plate Holder and the corresponding Quartz Thermal Insulation Plates as a complete assembly.
