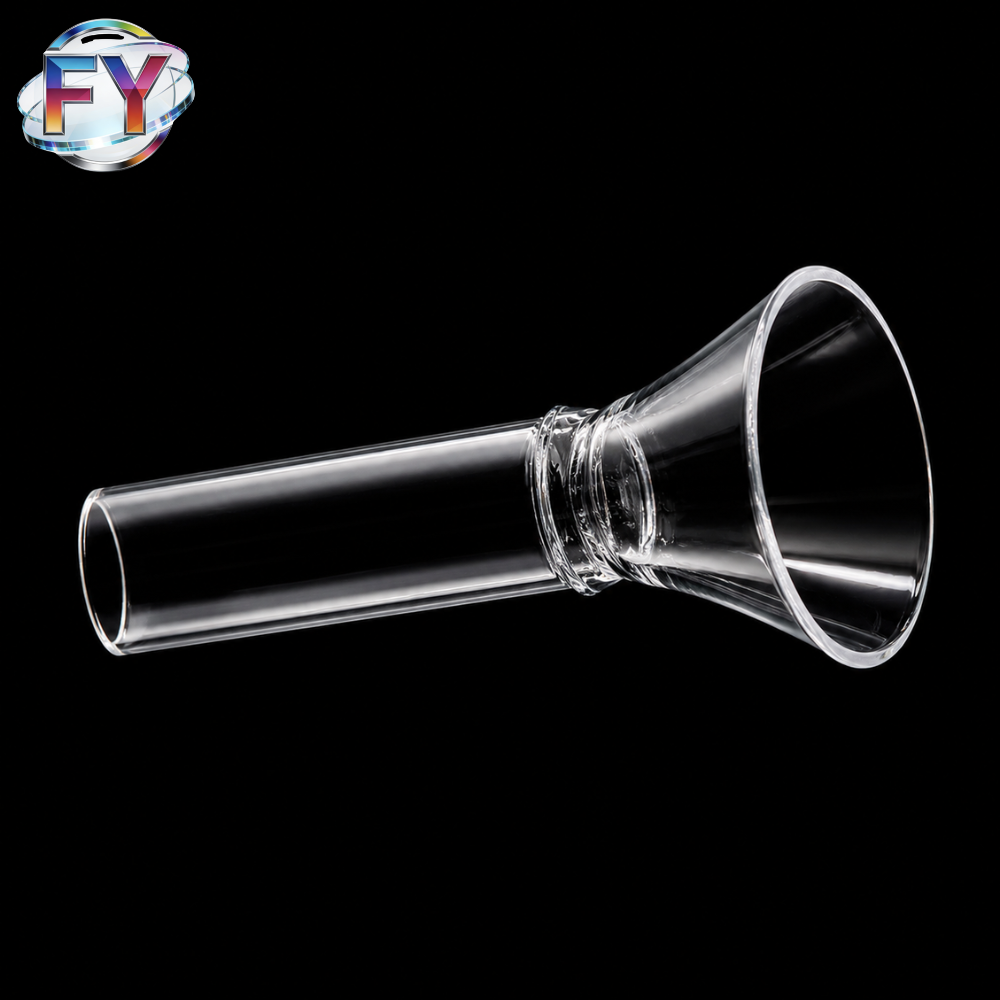

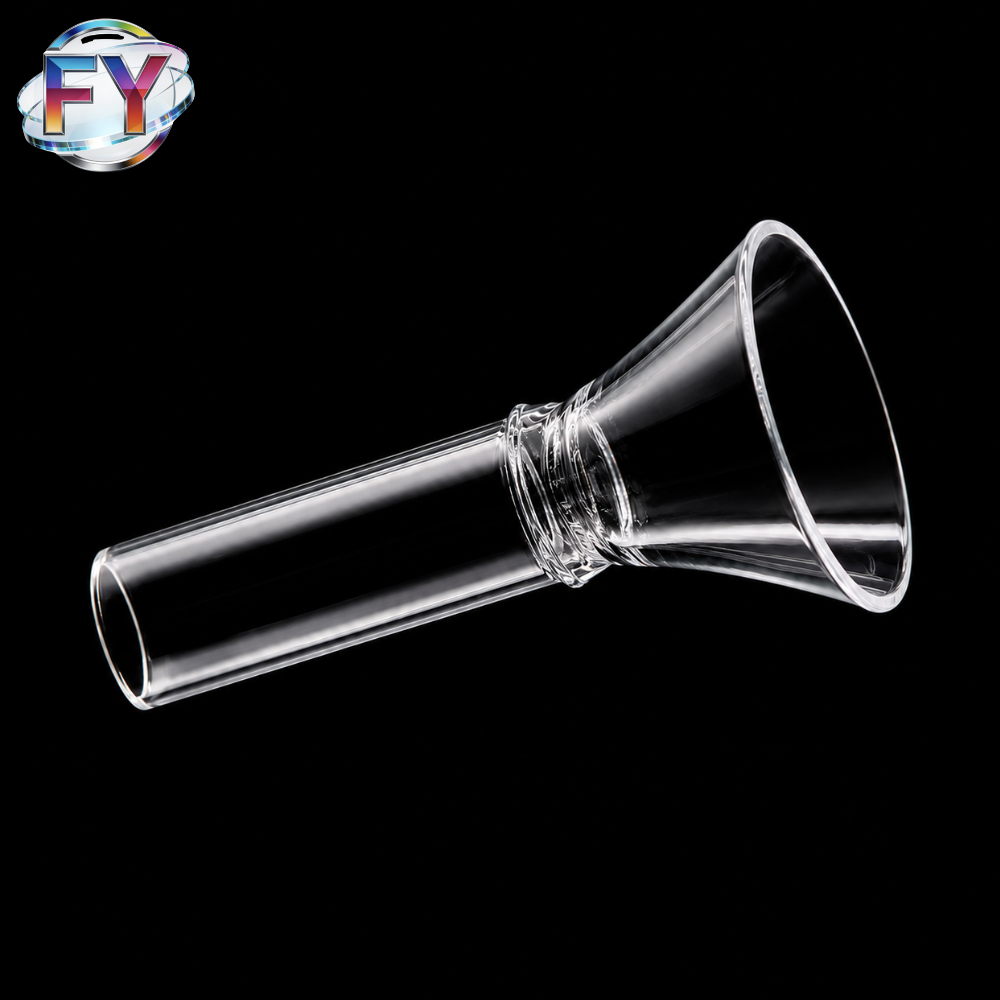

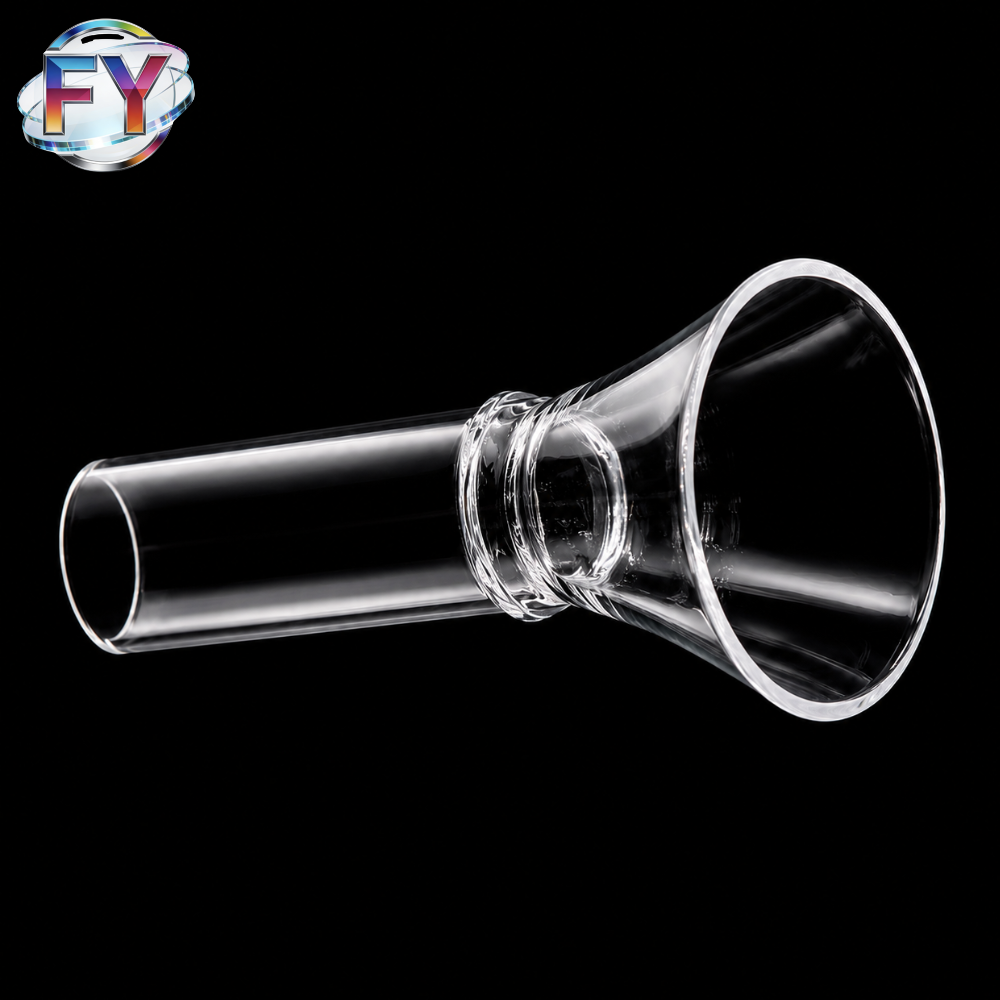

The Fused Quartz Flared Tube Connector is a custom quartz glass component designed with a straight tube section and a flared bell-mouth opening. Made from high-purity fused quartz, this product provides excellent transparency, thermal stability, chemical resistance, and dimensional reliability.
The flared end design allows the connector to be used as a transition part, guiding section, connection adapter, reaction tube component, or customized quartz glassware fitting. It is suitable for laboratory instruments, chemical reaction systems, high-temperature equipment, semiconductor-related experiments, optical systems, and custom quartz tube assemblies.
Custom outer diameter, inner diameter, tube length, flare angle, opening diameter, wall thickness, polishing, welding structure, and tolerance requirements are available according to customer drawings or samples.
Product Specifications
| Item | Description |
|---|---|
| Product Name | Fused Quartz Flared Tube Connector |
| Material | High-Purity Fused Quartz |
| Structure | Straight tube with flared / bell-mouth end |
| Appearance | Transparent, smooth quartz glass surface |
| Processing | Cutting, forming, welding, fire polishing, grinding |
| Surface Finish | Transparent polished / fire-polished |
| Application | Laboratory, chemical reaction, high-temperature equipment, quartz tube assemblies |
| Customization | Available according to drawings or samples |
Key Features
High-Purity Fused Quartz Material
Manufactured from high-purity fused quartz, the connector is suitable for clean, high-temperature, and chemically demanding environments.
Flared Bell-Mouth Design
The flared end provides a wider opening for transition, connection, gas flow guidance, liquid transfer, or assembly with other quartz components.
Excellent Thermal Stability
Fused quartz offers strong resistance to high temperatures and thermal shock, making it suitable for heating, reaction, and testing processes.
Good Chemical Resistance
The material has good resistance to many acids, chemical reagents, and process atmospheres, making it suitable for laboratory and industrial chemical systems.
High Transparency
The transparent quartz structure allows visual observation of flow, reaction processes, or internal conditions during operation.
Custom Quartz Fabrication
The tube diameter, flare size, length, wall thickness, end treatment, and connection structure can be customized based on specific equipment requirements.
Typical Applications
This fused quartz flared tube connector can be used in:
- Laboratory quartz glassware
- Chemical reaction systems
- High-temperature test equipment
- Quartz tube connection assemblies
- Semiconductor laboratory equipment
- Gas flow and liquid transfer systems
- Quartz reactor components
- Optical and scientific instruments
- Custom fused quartz tube assemblies
Customization Options
| Custom Item | Available Options |
|---|---|
| Tube Diameter | Customized |
| Wall Thickness | Customized |
| Tube Length | Customized |
| Flared Opening Diameter | Customized |
| Flare Angle | Customized |
| End Processing | Flat cut, chamfered, fire-polished, ground |
| Surface Finish | Transparent polished, fire-polished, ground |
| Structure | Straight tube, flared tube, welded joint, special adapter |
| Tolerance | According to customer drawing |
| Quantity | Prototype, small batch, mass production |
Product Advantages
This fused quartz flared tube connector combines high transparency, high-temperature resistance, chemical stability, and flexible custom processing. The bell-mouth design makes it suitable for tube transition, connection, guiding, and reaction applications.
Compared with ordinary glass connectors, fused quartz provides better thermal stability, lower thermal expansion, and higher reliability in demanding laboratory and industrial environments.
Information Needed for Quotation
For accurate quotation, please provide:
- Tube outer diameter, inner diameter, and wall thickness
- Total length
- Flared opening diameter
- Flare angle or shape requirement
- End treatment requirement
- Operating temperature and application environment
- Quantity required
- Drawing or sample photos
FAQ
1. Can the flared opening size be customized?
Yes. The opening diameter, flare angle, tube diameter, wall thickness, and length can all be customized according to drawings or samples.
2. What is the main application of this product?
It is mainly used as a quartz tube transition connector, flared adapter, reaction tube component, or custom quartz glass fitting in laboratory and industrial equipment.
3. Can this connector be used in high-temperature environments?
Yes. Fused quartz has excellent thermal stability and is suitable for high-temperature testing, reaction, and processing systems.
4. Can the surface be fire-polished?
Yes. Fire polishing, transparent polishing, grinding, chamfering, and custom end processing are available.
