1. Introduction
Quartz glassware and machined quartz components are widely used in semiconductor manufacturing, optical engineering, high-temperature processing, and vacuum systems. As semiconductor technology advances toward sub-7nm nodes and high-performance photonic systems expand, demand for ultra-high-purity quartz materials continues to increase.
According to industry insights from the Semiconductor Equipment and Materials International (SEMI), quartz-based components are essential consumables in thermal processing equipment. Their service life is primarily determined by thermal cycling fatigue (often above 1000°C operating conditions) and contamination thresholds rather than mechanical failure.
2. Material Definition and Scientific Basis
Fused quartz (fused silica) is an amorphous form of silicon dioxide (SiO₂) with extremely high purity levels:
- Industrial grade: ≥99.9% SiO₂
- Semiconductor grade: ≥99.99% SiO₂
- Ultra-high purity optical grade: up to 99.999% SiO₂
Unlike crystalline quartz, fused silica lacks grain boundaries, which significantly reduces defect density and improves thermal and optical stability.
Key Physical Properties
- Coefficient of thermal expansion: ~0.5 × 10⁻⁶ /K (20–300°C)
- Softening point: ~1665°C
- Continuous service temperature: 1100–1200°C
- UV transmission cutoff: ~180 nm
- Density: ~2.2 g/cm³
📌 Data sources: Corning Fused Silica Technical Data Sheets, Heraeus Quartz Glass Handbook
3. Manufacturing Processes and Industry Standards
Quartz glassware and machined quartz components are produced under strict industrial standards to ensure purity, consistency, and dimensional accuracy.
3.1 Key Industry Standards
- ASTM C1663 – Standard specification for fused silica materials
- ISO 9001 – Quality management systems
- SEMI F57 – Specification for high-purity quartz materials used in semiconductor equipment
These standards regulate:
- Metallic impurity levels (Fe, Al, Na, K, etc.)
- Bubble and inclusion density
- Hydroxyl (OH) content affecting optical transmission
- Dimensional tolerances and cleanliness requirements
3.2 Manufacturing Workflow
- Raw Material Purification
High-purity natural quartz or synthetic silica is chemically refined to remove trace metallic impurities. - High-Temperature Fusion (>1800°C)
Electric arc or flame hydrolysis processes are used to produce amorphous silica glass. - Forming Process
Includes tube drawing, pressing, and centrifugal casting to produce base glassware. - Precision Machining (CNC / Laser / Ultrasonic)
Used for producing flanges, optical windows, reaction tubes, and structural components. - Annealing Process
Controlled cooling reduces internal stress and enhances dimensional stability.
📌 Industry note: Semiconductor-grade quartz machining is typically performed in ISO Class 5–7 cleanroom environments to prevent particle contamination.

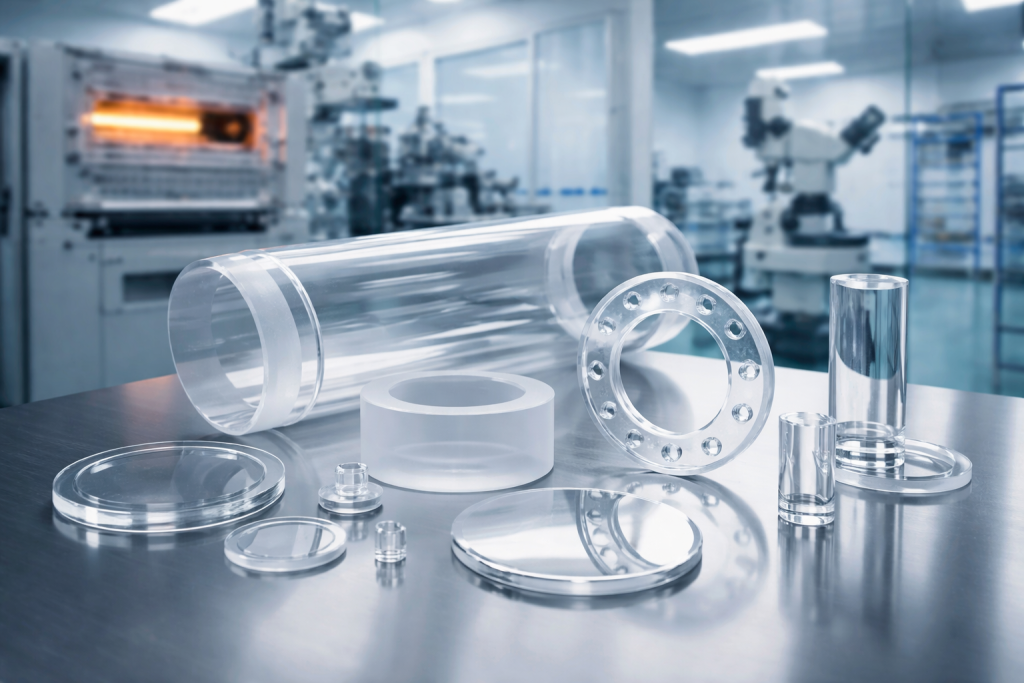

4. Machined Quartz Components
Machined quartz components are functional engineering parts designed for high-precision and high-reliability applications rather than simple glass products.
4.1 Typical Components
- Semiconductor reaction tubes
- Optical windows and laser viewports
- Vacuum chamber windows
- Quartz flanges and sealing rings
- High-temperature structural supports
4.2 Precision Requirements
- Dimensional tolerance: ±0.01 mm (precision grade)
- Surface roughness: Ra ≤ 0.2–0.4 μm (optical grade)
- Flatness: up to λ/10 for high-end optical applications
📌 Technical references: Heraeus Quartz Machining Guide, Momentive Engineering Specifications
5. Engineering Applications
5.1 Semiconductor Manufacturing
Quartz components are widely used in:
- Diffusion furnace systems
- Chemical vapor deposition (CVD) chambers
- Plasma etching equipment
- Wafer oxidation processes
Industry data from SEMI indicates that quartz consumables represent a significant portion of maintenance materials in thermal process equipment, with degradation mainly driven by thermal cycling above 1000°C and surface contamination.
5.2 Optical and Laser Systems
Quartz glass offers excellent transmission from deep ultraviolet to near-infrared wavelengths:
- High UV transparency (down to ~180 nm)
- Low fluorescence background
- High laser damage threshold
Applications include:
- Excimer lasers (193 nm, 248 nm)
- Spectroscopy systems
- Aerospace optical instruments
5.3 Vacuum and High-Energy Systems
Quartz materials are widely used in:
- Vacuum chambers
- Plasma processing systems
- High-energy physics equipment
NASA material research reports highlight fused silica as a preferred material for space optical systems due to its vacuum stability and radiation resistance.
5.4 High-Temperature Industrial Systems
Quartz components operate reliably in environments above 1100°C, including:
- Furnace tubes
- Thermal reactors
- Combustion systems
Compared to borosilicate glass, fused quartz provides significantly higher thermal stability and lower deformation risk.
6. Material Comparison for Engineering Selection
Quartz Glass vs Borosilicate Glass
| Property | Quartz Glass | Borosilicate Glass |
|---|---|---|
| Continuous working temperature | 1100–1200°C | ~500°C |
| Thermal expansion coefficient | Extremely low | Moderate |
| UV transmission | Excellent | Limited |
| Chemical purity | Very high | Medium |
| Cost | High | Lower |
📌 References: Schott AG Technical Glass Data, Corning Material Comparison Charts
7. Limitations and Engineering Considerations
Despite its excellent performance, quartz glass has several limitations:
- Brittle fracture behavior under mechanical impact
- High manufacturing and machining cost
- Chemical vulnerability to hydrofluoric acid (HF)
- Sensitivity to microcrack formation under stress
Engineering mitigation strategies include:
- Optimized structural design to reduce stress concentration
- Increased thickness in load-bearing regions
- Controlled thermal ramp-up and cool-down processes
8. Industry Outlook
The demand for high-purity quartz components continues to grow due to:
- Expansion of advanced semiconductor fabs (3–7 nm nodes)
- Increasing AI chip production
- Growth in power electronics and photonic systems
- Rising demand for customized precision quartz components
Industry consensus indicates that quartz consumables remain a critical material category in semiconductor manufacturing due to their direct impact on process stability and yield performance.
9. Conclusion
Quartz glassware and machined quartz components play a fundamental role in modern engineering systems. Their combination of thermal resistance, optical transparency, and chemical stability makes them indispensable in semiconductor processing, optical technologies, and high-temperature industrial applications.
With continued advancements in precision manufacturing and ultra-clean processing environments, demand for customized quartz components is expected to grow steadily across high-tech industries.
