This quartz flange ring is a precision-machined quartz component designed for photovoltaic equipment, quartz tube assemblies, high-temperature furnace systems, and semiconductor-related applications. Made from high-purity fused quartz, the product offers excellent thermal stability, chemical resistance, low thermal expansion, and reliable dimensional accuracy.

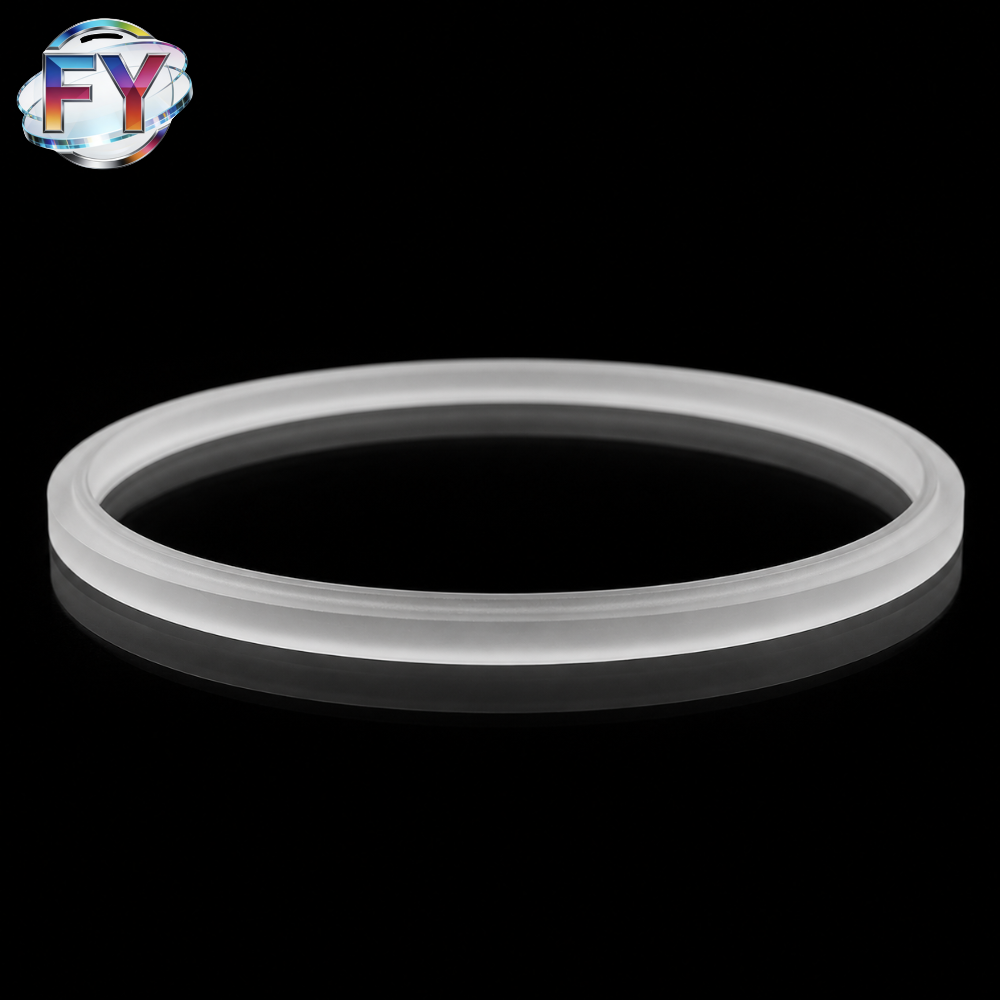

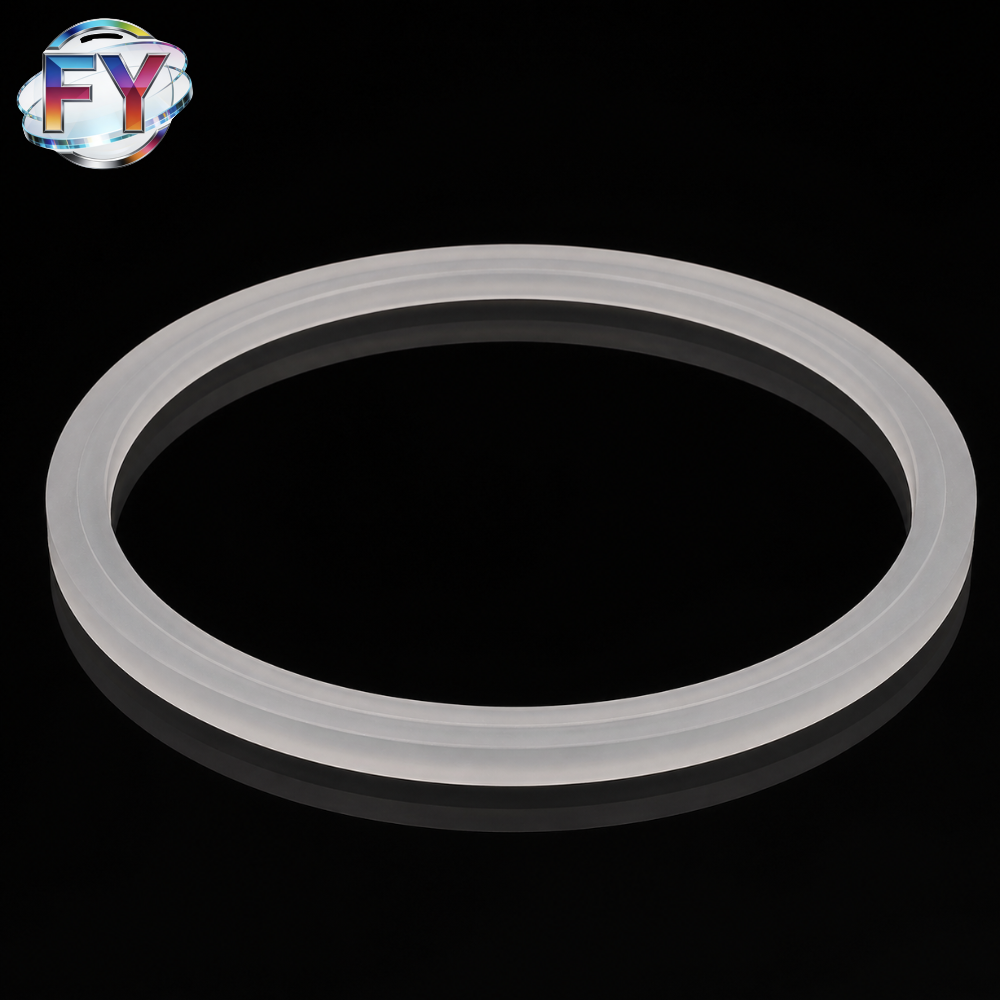

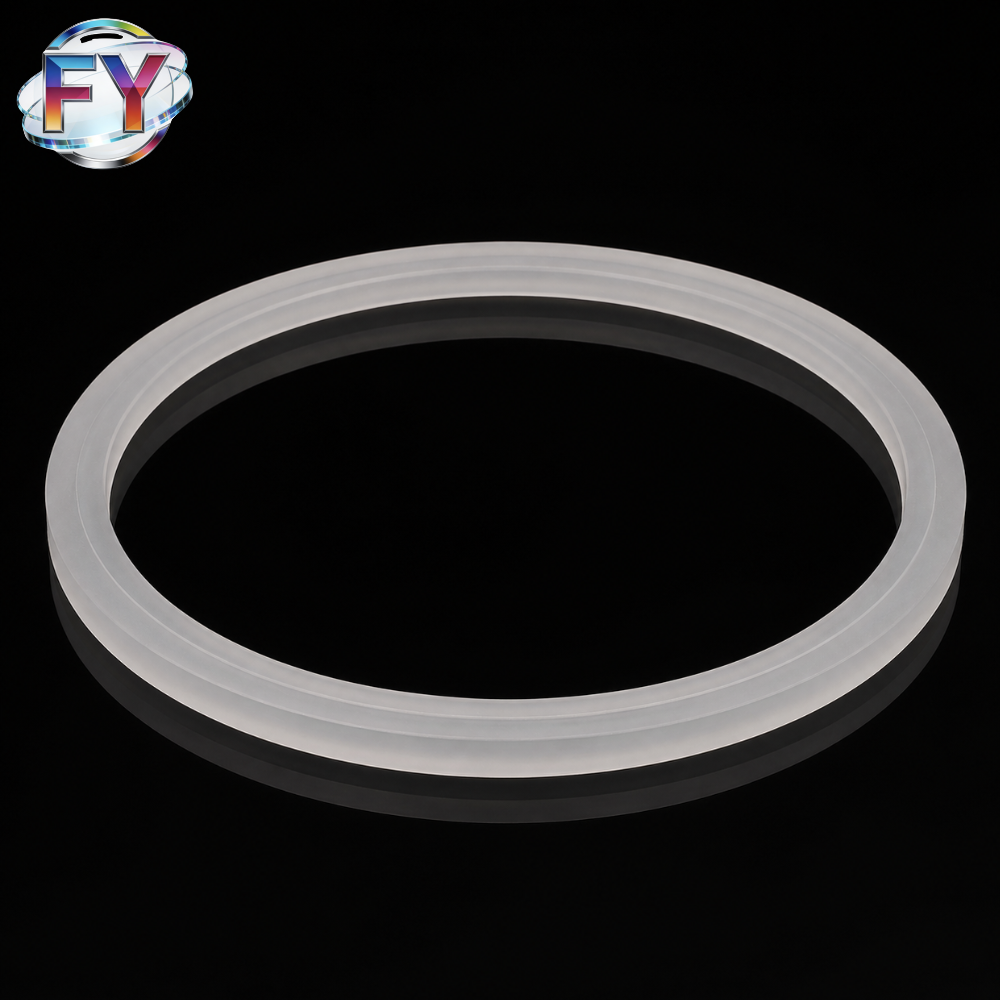

The ring features a large circular structure with a smooth machined surface and translucent frosted appearance. It is commonly used as a supporting, positioning, connecting, or auxiliary sealing component in quartz tube systems and high-temperature process equipment.
Custom dimensions, surface finish, edge processing, grooves, steps, and tolerance requirements are available according to customer drawings or samples.
Specifikace produktu
| Položka | Popis |
|---|---|
| Název produktu | Quartz Flange Ring |
| Materiál | High-Purity Quartz / Fused Quartz |
| Velikost | 560mm × 25mm |
| Struktura | Circular flange ring |
| Povrch | Frosted / precision-ground surface |
| Zpracování | Cutting, grinding, chamfering, precision machining |
| Aplikace | Photovoltaic equipment, quartz tube assemblies, furnace components |
| Customization | Available according to drawings or samples |
Klíčové vlastnosti
High-Purity Quartz Material
Manufactured from high-purity quartz material, this flange ring is suitable for clean and high-temperature industrial environments, especially photovoltaic and semiconductor-related equipment.
Excellent High-Temperature Resistance
Fused quartz provides strong thermal stability and can withstand demanding high-temperature process conditions.
Nízká tepelná roztažnost
The low thermal expansion of quartz helps maintain dimensional stability during heating and cooling cycles.
Good Chemical Resistance
Quartz material offers excellent resistance to many acids, corrosive gases, and process chemicals used in industrial production environments.
Precision Machined Structure
Outer diameter, inner diameter, thickness, grooves, steps, chamfers, and surface finish can be processed according to technical drawings.
Custom Manufacturing Available
We support non-standard quartz flange rings for different photovoltaic, semiconductor, laboratory, and high-temperature equipment applications.
Typické aplikace
This quartz flange ring is suitable for:
- Photovoltaic quartz tube assemblies
- Solar cell production equipment
- Quartz tube upper components
- Diffusion furnace and annealing furnace parts
- High-temperature furnace tube systems
- Semiconductor quartz components
- Vacuum and thermal processing equipment
- Custom quartz support and positioning parts
Možnosti přizpůsobení
| Custom Item | Available Options |
|---|---|
| Vnější průměr | Na míru |
| Vnitřní průměr | Na míru |
| Tloušťka | Na míru |
| Povrchová úprava | Ground, frosted, polished |
| Zpracování okrajů | Chamfer, bevel, rounded edge |
| Struktura | Groove, step, flat ring, special profile |
| Tolerance | According to customer drawing |
| Quantity | Prototype, small batch, mass production |
| Drawing Support | OEM / ODM quartz machining available |
Product Advantages
This high-purity quartz flange ring is suitable for equipment that requires high temperature resistance, dimensional stability, chemical durability, and low contamination risk. Compared with ordinary glass or metal parts, quartz flange rings provide better stability in thermal processing environments and are widely used in photovoltaic quartz tube systems and precision industrial equipment.
Information Needed for Quotation
For accurate quotation, please provide:
- Outer diameter, inner diameter, and thickness
- Drawing or sample photo
- Groove, step, chamfer, or special structure requirements
- Surface finish requirement
- Tolerance requirement
- Application environment
- Quantity required
ČASTO KLADENÉ DOTAZY
1. Can the quartz flange ring be customized?
Yes. Outer diameter, inner diameter, thickness, groove, step, chamfer, surface finish, and tolerance can be customized according to customer drawings or samples.
2. What is the main application of this quartz flange ring?
It is mainly used as a supporting, positioning, connecting, or auxiliary sealing component in photovoltaic quartz tube assemblies and high-temperature furnace systems.
3. Is this product suitable for photovoltaic equipment?
Yes. This quartz flange ring is suitable for photovoltaic production equipment, especially quartz tube and furnace-related components.
4. Can you produce large-size quartz flange rings?
Yes. Large-size quartz flange rings can be manufactured according to customer requirements. Final feasibility depends on size, thickness, structure, and tolerance.
