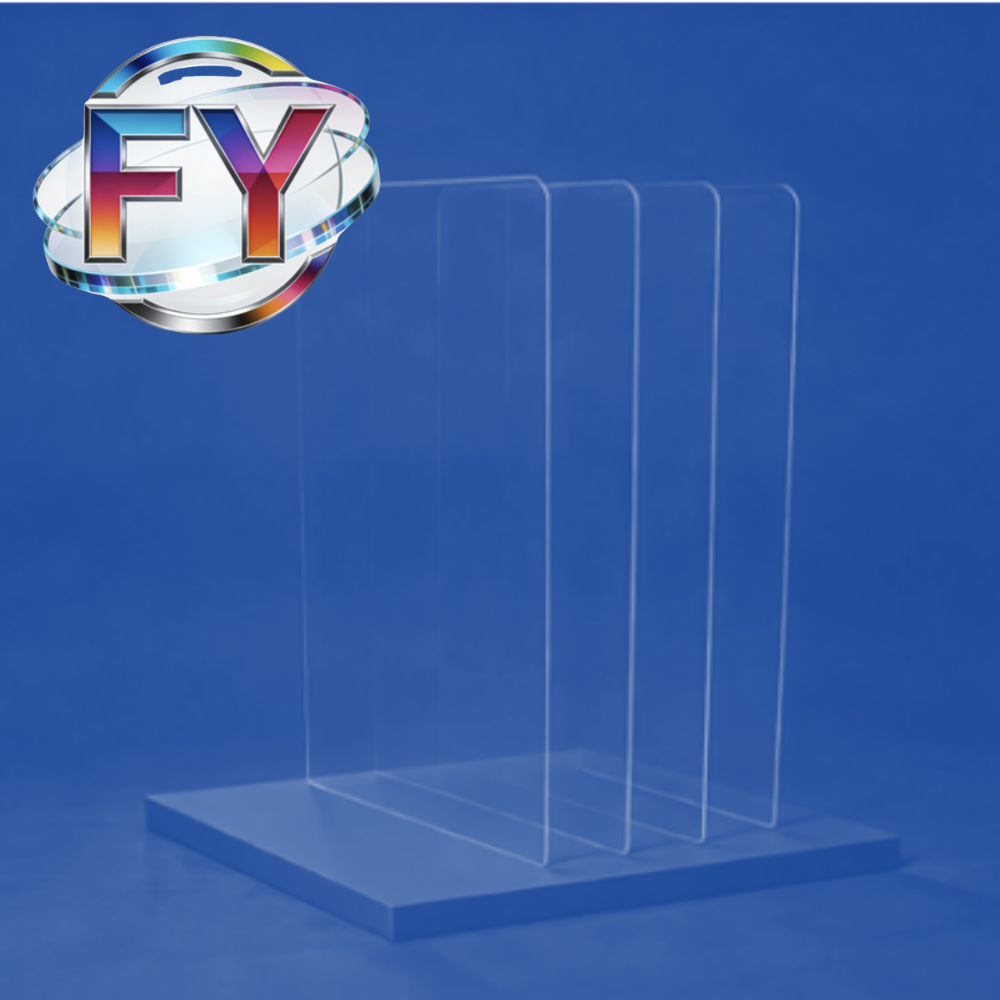

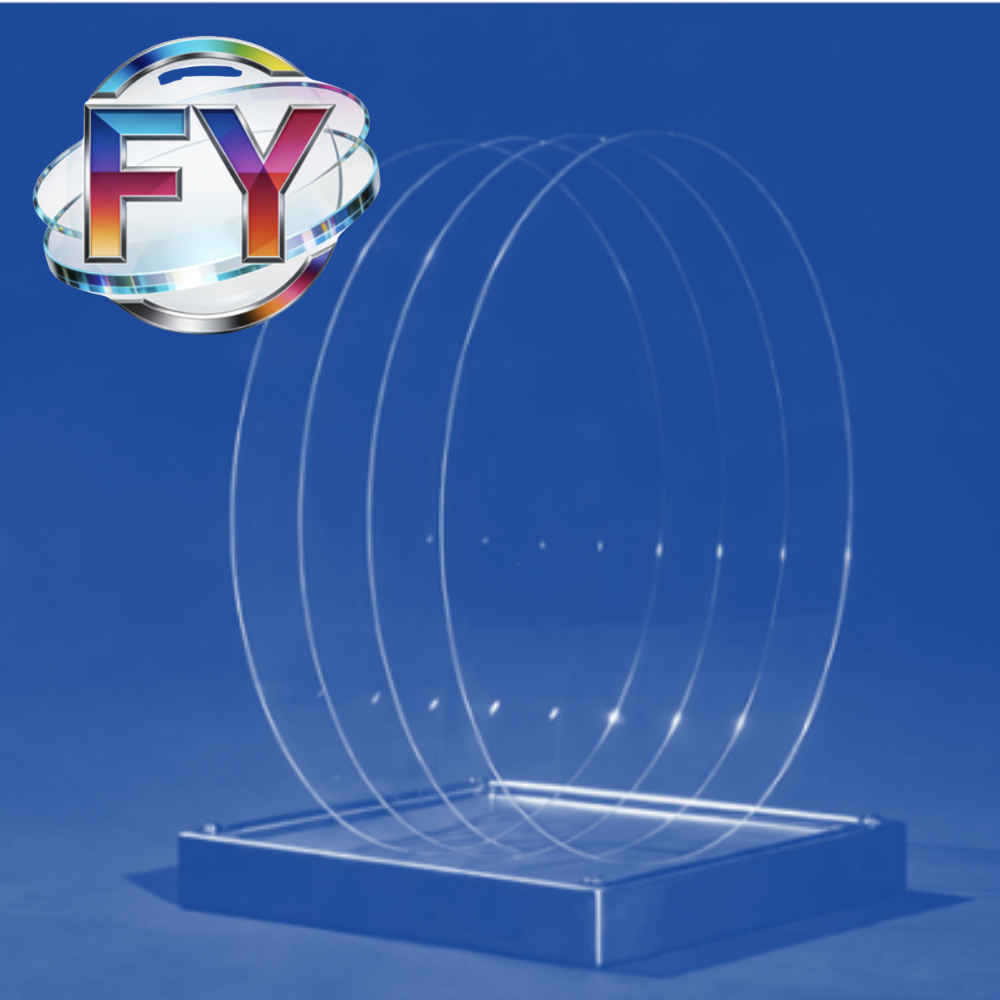

The sapphire temporary wafer carrier is an advanced engineering substrate designed for ultra-thin wafer processing in next-generation semiconductor packaging. It is widely used in 2.5D/3D IC integration, TSV, RDL, fan-out packaging, and other advanced back-end processes requiring temporary wafer support.
The product provides a high-rigidity, ultra-flat, and thermally stable platform for wafer thinning and temporary bonding/debonding workflows. It is specifically engineered to address warpage, stress accumulation, and mechanical instability in ultra-thin wafers below 50 μm.
Industry Pain Points
As advanced packaging continues to scale toward higher density and thinner structures, process instability has become a key limitation.
Major challenges include:
- CTE mismatch between wafer, substrate, interposer, underfill, and molding compounds
- Stress accumulation during repeated thermal cycling processes
- Adhesive curing shrinkage and material deformation
- Asymmetric stack structure in ultra-thin wafer packaging
- Wafer warpage leading to alignment deviation and yield loss
- Mechanical fragility of ultra-thin wafers during handling and transfer
These factors significantly impact process yield, device reliability, and manufacturing efficiency.
Material Solution
Sapphire offers a unique combination of mechanical rigidity, optical transparency, and thermal stability, making it an ideal material for temporary wafer carrier applications.
It provides:
- Stable mechanical support for ultra-thin wafers
- Low deformation under thermal and mechanical stress
- High compatibility with laser debonding processes
- Uniform stress distribution across large-area substrates
- Excellent durability for repeated industrial use
Key Performance Advantages
Ultra-High Stiffness (Young’s Modulus: 345–420 GPa)
Effectively suppresses wafer bending and warpage during thermal cycling and mechanical processing.
High Mechanical Strength (Vickers Hardness: 1800–2200 HV)
Provides strong resistance to surface damage and ensures long service life under repeated processing conditions.
High Optical Transmittance (>83%, 300–1200 nm)
Enables efficient laser transmission for debonding processes and compatibility with multiple temporary bonding technologies.
Excellent Material Uniformity
Ensures consistent stress distribution across large-format wafers and panels, reducing localized deformation.
Thermal & Chemical Stability
Maintains structural integrity under high-temperature processes and chemical cleaning environments.
Tekniset tiedot
Wafer & Panel Dimensions
| Parametri | Tekniset tiedot |
|---|---|

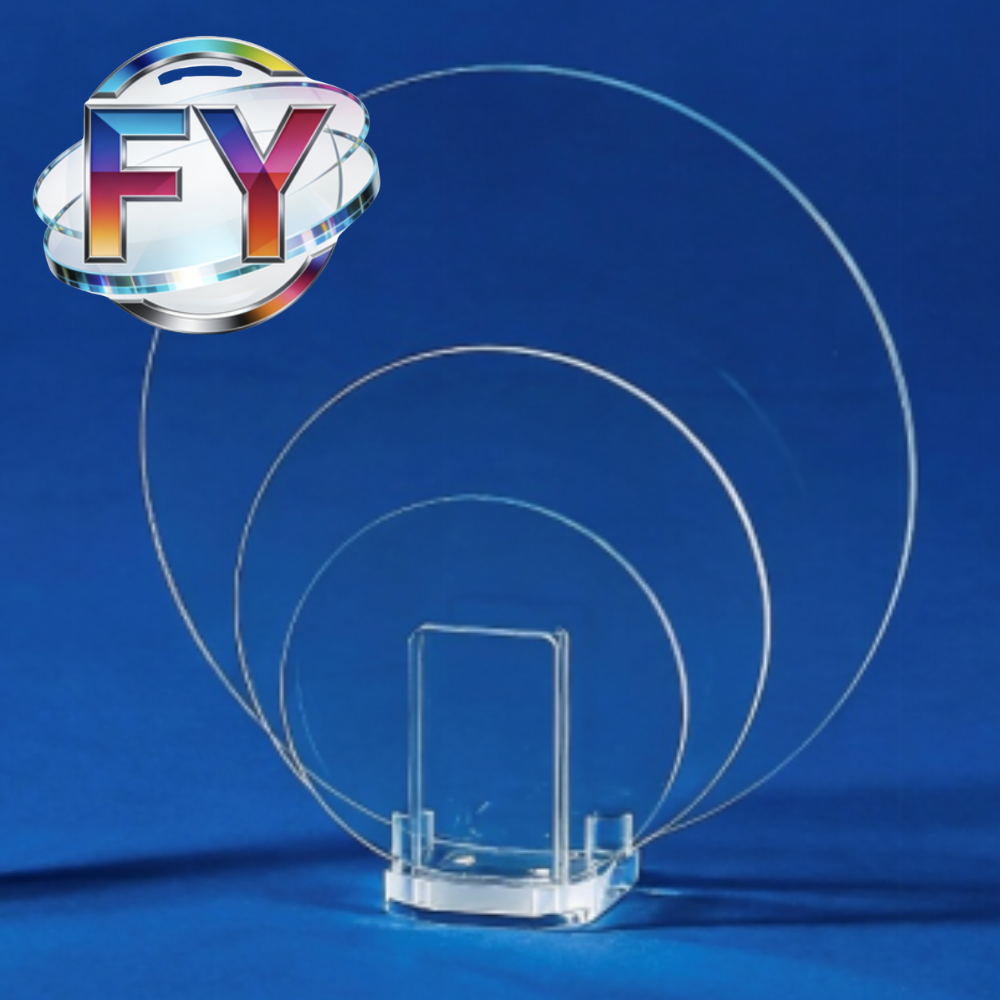

| Kiekon koko | 8 inch / 12 inch |

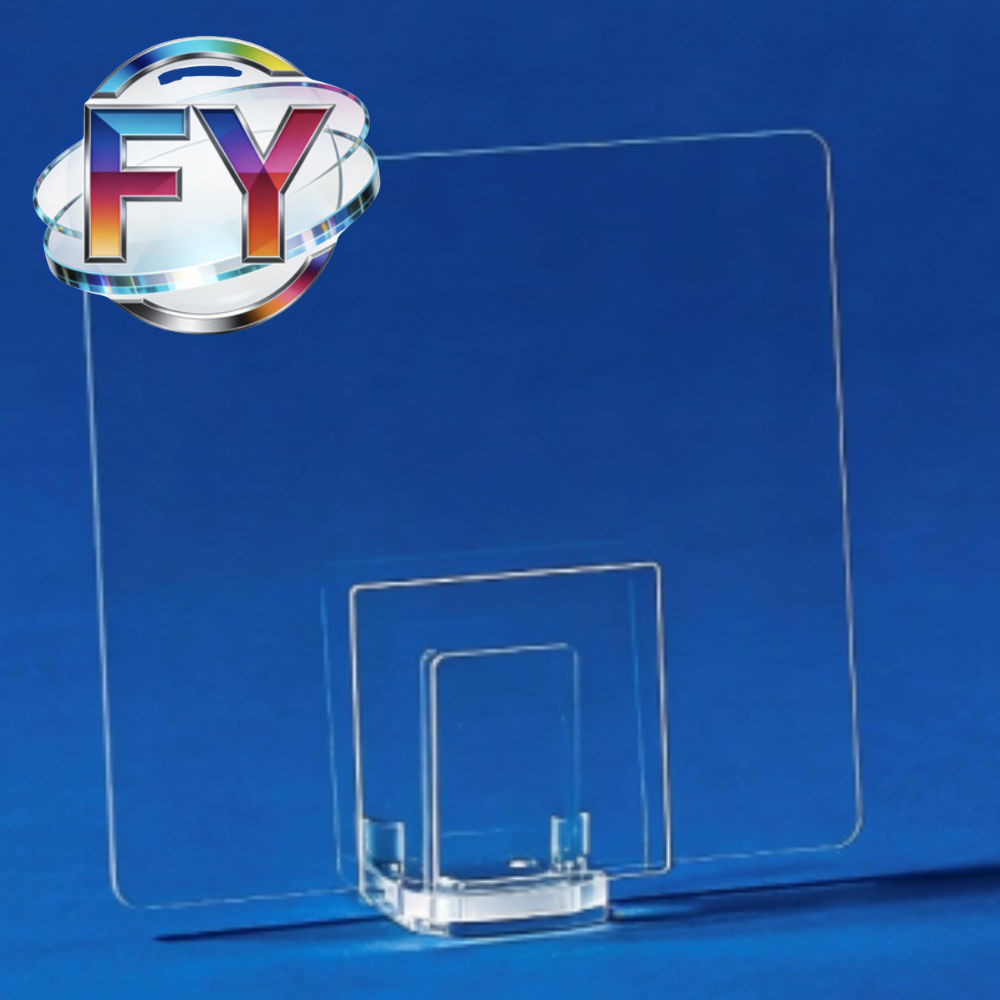

| Paneelin koko | 100 × 100 mm to 510 × 515 mm |
| Paksuusalue | 0.7 – 2.0 mm |
Dimensional & Surface Quality
| Kiinteistö | Standard Grade | High Precision Grade |
|---|---|---|
| Total Thickness Variation (TTV) | ≤ 3 μm | ≤ 2 μm |
| Warp | ≤ 100 μm | ≤ 50 μm |
| Paksuuden toleranssi | ±0.010 mm | ±0.005 mm |
| Surface Roughness (Ra) | < 1.0 nm | < 1.0 nm |
| Scratch/Dig | 60/40 | 40/20 |
Material Properties
| Kiinteistö | Arvo |
|---|---|
| Youngin moduuli | 345 – 420 GPa |
| Vickers-kovuus | 1800 – 2200 HV |
| Optical Transmittance | >83% (300–1200 nm) |
| Tiheys | 3,98 g/cm³ |
| Lämmönjohtavuus | 30–40 W/m·K |
| CTE (20°C) | 5.6 – 7.7 ×10⁻⁶/K |
Application Scope
- Ultra-thin wafer backside processing
- 2.5D / 3D IC heterogeneous integration
- TSV (Through-Silicon Via) processes
- RDL (Redistribution Layer) fabrication
- Temporary wafer bonding and debonding

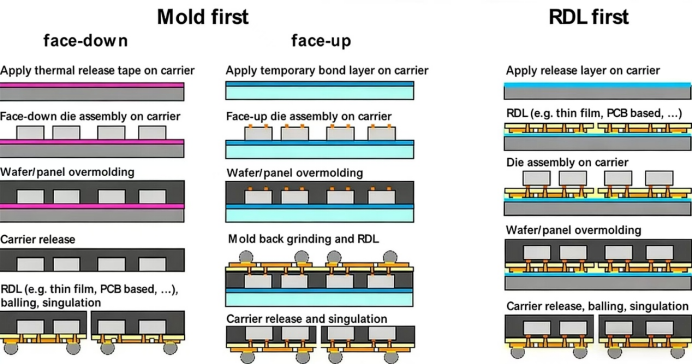

- Fan-Out Panel Level Packaging (FOPLP)
- Advanced wafer thinning (<50 μm structures)
Engineering Value
The sapphire temporary wafer carrier enables advanced packaging manufacturers to achieve:
- Significant reduction in wafer warpage and deformation
- Improved alignment accuracy in fine-pitch packaging
- Stable handling of ultra-thin wafers (<50 μm)
- Higher yield consistency across large-area processes
- Enhanced process repeatability and throughput stability
- Compatibility with next-generation heterogeneous integration platforms
FAQ
Q1: Why is sapphire used for temporary wafer carriers in advanced packaging?
A: Sapphire provides exceptional stiffness, hardness, and thermal stability, enabling superior warpage control and mechanical reliability during ultra-thin wafer processing.
Q2: Does the sapphire carrier support laser debonding?
A: Yes. Its high optical transmittance in the UV–mid IR range allows efficient laser penetration, making it suitable for laser-assisted debonding processes.
Q3: Can sapphire carriers be used for panel-level packaging applications?
A: Yes. Sapphire carriers support large-area formats with excellent flatness and uniform stress distribution, making them suitable for FOPLP and other panel-level advanced packaging technologies.
